My fourth tutorial: 3dTube

You can find the files for this tutorial under tutorials/fluidSolidInteraction/3dTube.


Tutorial Aims

  • Demonstrate the solution of an internal flow fluid-solid interaction problem;
  • Demonstrate the fluid-solid interaction coupling approaches available in solids4foam;
  • Provide insight into the relative performance of the different coupling approaches for internal flows;
  • Examine the effect of time-step on the performance of the coupling approaches.

Case Overview

This case consists of a pressure pulse applied in a thick-walled elastic tube (Figure 1).

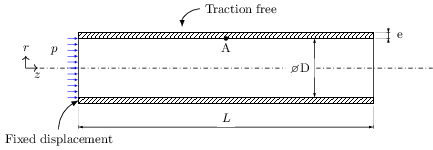

Figure 1: Wave propagation in an elastic pipe

Figure 1: Wave propagation in an elastic pipe

The fluid is assumed incompressible, Newtonian and isothermal, with a density of 1000.0 kg/m3 and kinematic viscosity of 3e-6 m2/s. A pressure wave, with a peak of 1333.3 Pa, is applied at the tube inlet for a duration of 3e-3 s. The outlet pressure is held at 0 Pa throughout.

The tube wall is assumed to be an isotropic elastic body under the small-strain regime, modelled with Hooke's law, for consistency with the original publication that proposed this benchmark. The density is 1200.0 kg/m3, Young's modulus is 300 kPa and Poisson's ratio is 0.3.

The case demonstrates a strong coupling between the fluid and the solid due to the high fluid-to-solid density ratio. When using a partitioned solution approach (as in solids4foam), the so-called ‘added-mass operator' makes the problem difficult to solve due to numerical instabilities.

Currently, in solids4foam, there are two classes of approaches for partitioned FSI coupling:

For each of these two classes of approaches, we can employ different methods to accelerate the FSI iteration loop convergence; within solids4foam, we can use:

As well as using these acceleration algorithms, we can also use a weakly compressible fluid model rather than the standard fully incompressible model; for FSI, weakly compressible fluid models how been shown to improve convergence, for example, see E. Tandis and A. Ashrafizadeh, "A numerical study on the fluid compressibility effects in strongly coupled fluid–solid interaction problems," Engineering with Computers, 2019, doi: 10.1007/s00366-019-00880-4..

In this tutorial, we will compare six variants of the approaches above:

  1. Dirichlet-Neumann formulation with Aitken's acceleration and an incompressible fluid model: We use the pimpleFluid fluid model.
  2. Dirichlet-Neumann formulation with IQNILS acceleration and an incompressible fluid model: We use the pimpleFluid fluid model.
  3. Dirichlet-Neumann formulation with Aitken's acceleration and a weakly compressible fluid model: We use the sonicLiquidFluid fluid model.
  4. Dirichlet-Neumann formulation with IQNILS acceleration and a weakly compressible fluid model: We use the sonicLiquidFluid fluid model.
  5. Robin-Neumann formulation with an incompressible fluid: Support for this approach is implemented in the pimpleFluid model, where we apply special interface boundary conditions: elasticWallPressure for the fluid pressure field, and elasticWallVelocity for the fluid velocity field.
  6. Dirichlet-Neumann formulation with IQNILS acceleration and an incompressible fluid model using preCICE: This approach is the same as approach 1, except the preCICE coupling implementation is used. preCICE is an open-source coupling library for partitioned multi-physics simulations. In this case, solids4Foam is used as the solid solver, and standard pimpleFoam is used as the fluid solver (as opposed to solids4foam's pimpleFluid fluid model). Due to implementation differences, this preCICE IQNILS approach may perform differently than the built-in solids4foam approach.

In all approaches, the solid domain setup is the same, where an incremental small strain formulation is used (the linearGeometry solid model). One-quarter of the tube's cross-section is considered, although the case could be modelled as 2-D axisymmetric. The test is run for 0.02 s. A relatively tight FSI loop tolerance of 1e-6 is used for all approaches based on the interface motion. For approach 6 (preCICE), the relative displacement tolerance was set to 1e-6, and the relative force tolerance was set to 1e-3.

In all cases, the first-order Euler time scheme is used for the solid and fluid.


Running the Case

For approaches 1 to 5, the tutorial case is located at solids4foam/tutorials/fluidSolidInteraction/3dTube. The tutorial case can be run using the included Allrun script, i.e. > ./Allrun. In this case, the Allrun script is

#!/bin/bash

# Source tutorial run functions
. $WM_PROJECT_DIR/bin/tools/RunFunctions

# Example usage
# ./Allrun
# ./Allrun sonicLiquidFluid
# ./Allrun robin

# Select approach
if [[ "$1" == "sonicLiquidFluid" ]]; then
    # Dirichlet-Neumann sonicLiquidFluid approach
    echo "Using the Dirichlet-Neumann sonicLiquidFluid approach"
    for file in $(find ./0 ./constant ./system -name '*.sonicLiquidFluid')
    do
        ln -vnsf ${file##*/} ${file%.*}
    done
elif [[ "$1" == "robin" ]]; then
    # Robin-Neumann pimpleFluid approach
    echo "Using the Robin-Neumann sonicLiquidFluid approach"
    for file in $(find ./0 ./constant ./system -name '*.robin')
    do
        ln -vnsf ${file##*/} ${file%.*}
    done
else
    # Dirichlet-Neumann pimpleFluid approach
    echo "Using the Dirichlet-Neumann pimpleFluid approach"
    for file in $(find ./0 ./constant ./system -name '*.pimpleFluid')
    do
        ln -vnsf ${file##*/} ${file%.*}
    done
fi

# Source solids4Foam scripts
source solids4FoamScripts.sh

# Check case version is correct
solids4Foam::convertCaseFormat .

# Check fvSolution for foundation version
if [[ $WM_PROJECT = "OpenFOAM" ]] && [[ $WM_PROJECT_VERSION != *"v"* ]]
then
    if [[ -f "${CASE_DIR}"/system/fluid/fvSolution ]]
    then
        echo "OpenFOAM.org specific: replacing 'residualControl' with"
        echo " 'outerCorrectorResidualControl' in system/fluid/fvSolution"
        sed -i "s/residualControl/outerCorrectorResidualControl/g" \
            "${CASE_DIR}"/system/fluid/fvSolution
    fi
fi

# Create meshes
solids4Foam::runApplication -s solid blockMesh -region solid
solids4Foam::runApplication -s fluid blockMesh -region fluid

# Run solver
solids4Foam::runApplication solids4Foam

# Create plots
if command -v gnuplot &> /dev/null
then
    echo "Generating plots"
    gnuplot -p displacement.gnuplot &> /dev/null
    gnuplot -p fsiConvergence.gnuplot &> /dev/null
else
    echo "Please install gnuplot if you would like to generate the plots"
fi

As can be seen above, the Allrun script can be run with different values for the first argument $1 passed to the script. Running the script without any argument (i.e., ./Allrun) uses the FSI coupling approach 1 (Aitken's) or 2 (IQNILS), depending on the value of fluidSolidInterface in constant/fsiProperties; for example, fluidSolidInterface IQNILS;. The weakly compressible fluid model (approaches 3 and 4) can be used by running the Allrun script with the argument sonicLiquidFluid, i.e. ./Allrun sonicLiquidFluid. Once again, switching between approach 3 (Aitken's) and 4 (IQNILS) is controlled via the fluidSolidInterface setting in constant/fsiProperties. Finally, the Robin-Neumann coupling approach (approach 5) can be used by executing the Allrun script as ./Allrun robin for approach 5. Examining the U and p files in 0/fluid.robin/ shows that the Robin approach uses the custom conditions elasticWallVelocity and elasticWallPressure at the interface.

The Allrun script updates the case with links to the correct files to be used by each approach. The Allrun script runs the OpenFOAM blockMesh utility to generate the meshes in the solid and fluid domains, followed by running the solids4Foam solver. Subsequently, if gnuplot is installed, three figures will be generated in the case directory:

  • axialDisplacement.pdf: this plots the axial displacement of point A vs time.
  • radialDisplacement.pdf: this plots the radial displacement of point A vs time.
  • fsiConvergence.pdf: this plots the number of FSI iterations per time step.

The tutorial case for approach 6, which uses preCICE, is located at solids4foam/tutorials/fluidSolidInteraction-preCICE/3dTube; once again, the Allrun script runs the case.

Tip

Remember that a tutorial case can be cleaned and reset using the includedAllrun script, i.e. ./Allclean.


Analysing the Results

As in the beamInCrossFlow tutorial, the case can be opened in ParaView (Figure 2) by creating an empty case.foam file in the case directory (e.g., touch case.foam) and opening it in ParaView (e.g., File -> Open -> case.foam). The Extract Block ParaView filter can be used to extract the solid region, and a second instance of the Extract Block filter can extract the fluid region. In that way, the fluid region can be coloured by a fluid field (e.g. p or U) and the solid region by a solid field (e.g. D or sigmaEq). In Figure 2, multiple instances of the Reflect filter are used to display the entire fluid domain (rather than one quarter of it) and three quarters of the solid domain.

Diagram of ParaView interface showing the 3-D tube problem

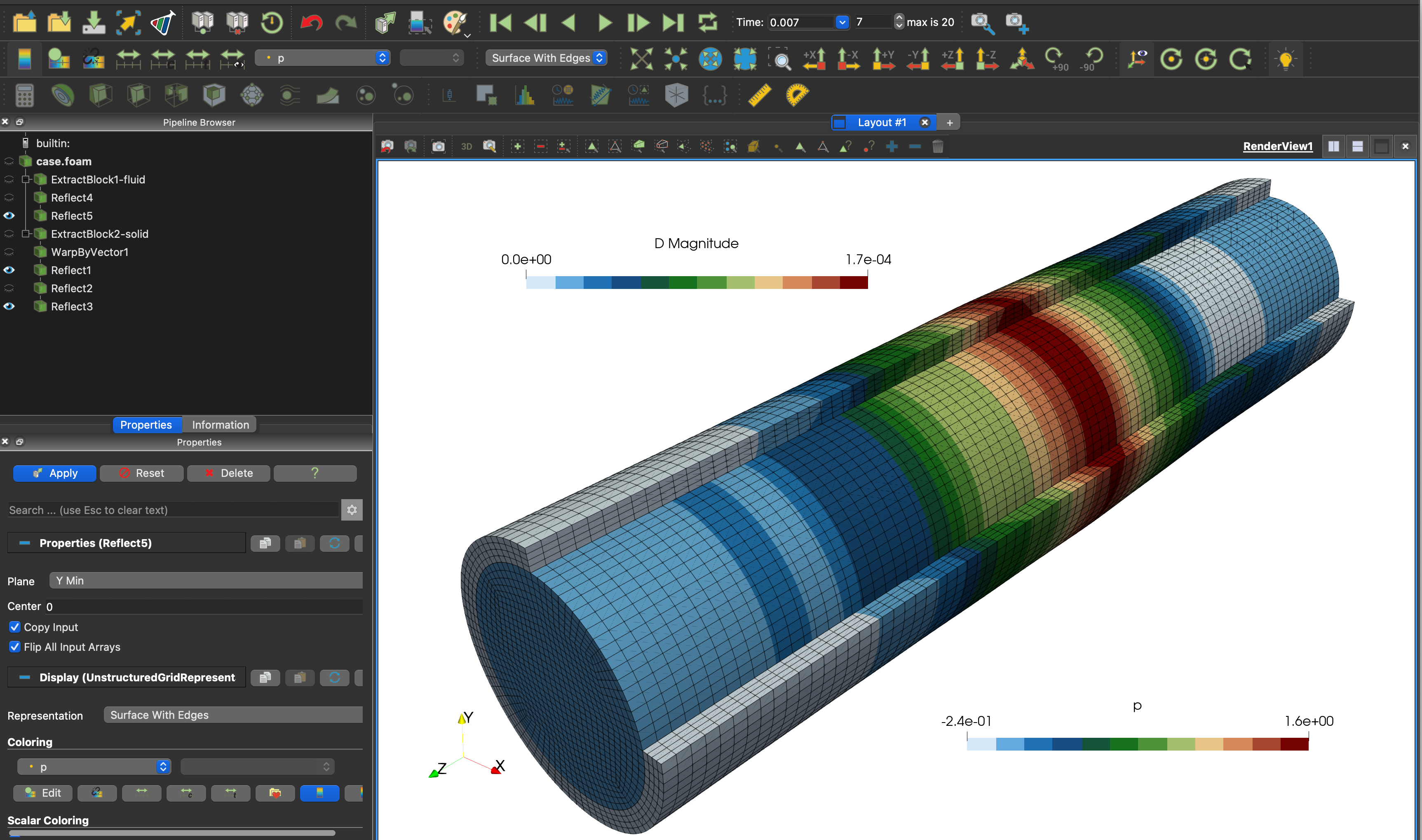

Figure 2: The solid displacement and fluid pressure in ParaView

As noted above, if gnuplot is installed, the files axialDisplacement.pdf, radialDisplacement.pdf and fsiConvergence.pdf will be available in the case directory. You can open these figures using a PDF viewer, e.g. evince axialDisplacement.pdf in Linux or open axialDisplacement.pdf in macOS. The axialDisplacement.pdf (Figure 3) figure plots the axial displacement of point A (see Figure 1) vs time, while radialDisplacement.pdf plots the radial displacement of point A. The fsiConvergence.pdf (Figure 4) file plots the number of FSI iterations per time step.

Axial displacement

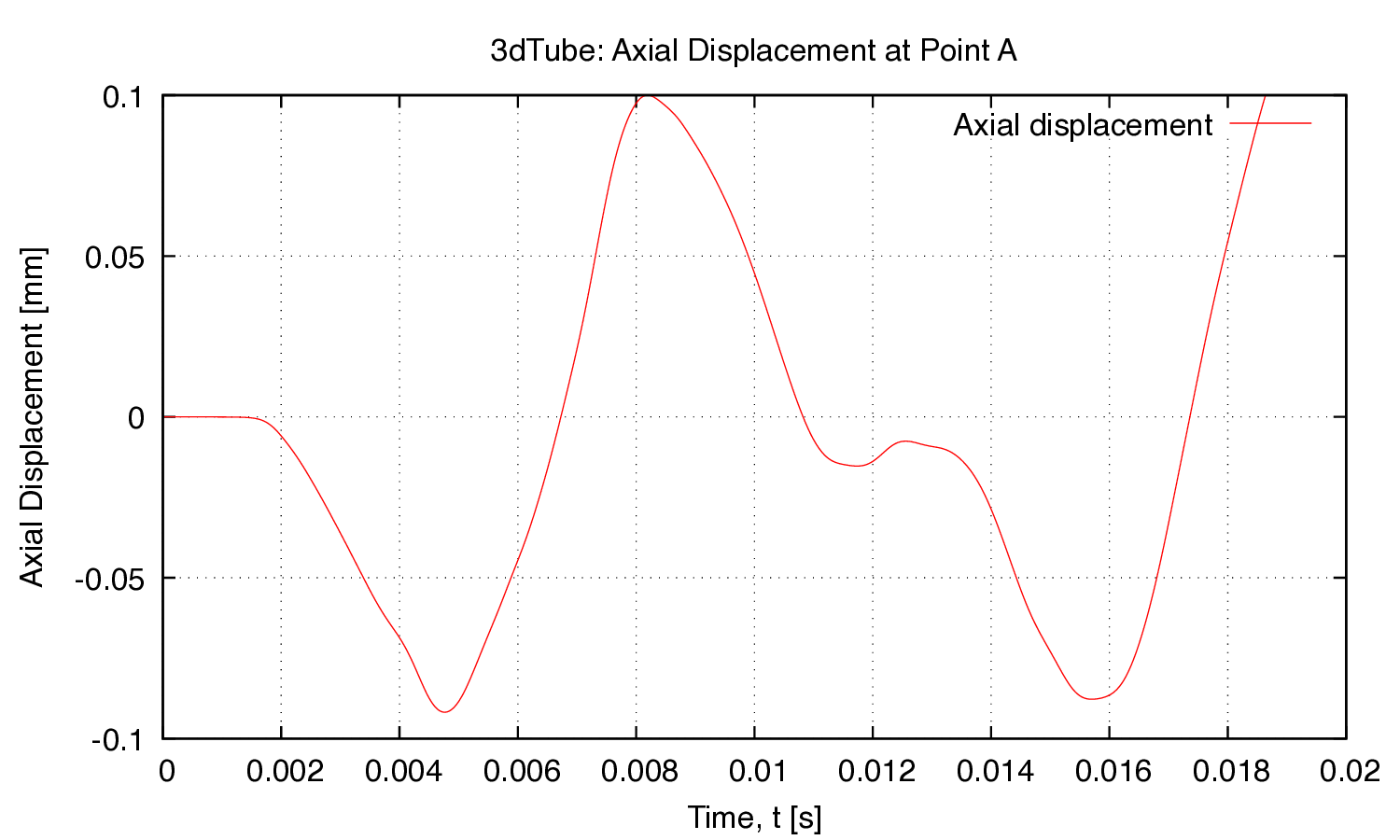

Figure 3: axialDisplacement.pdf

FSI convergence

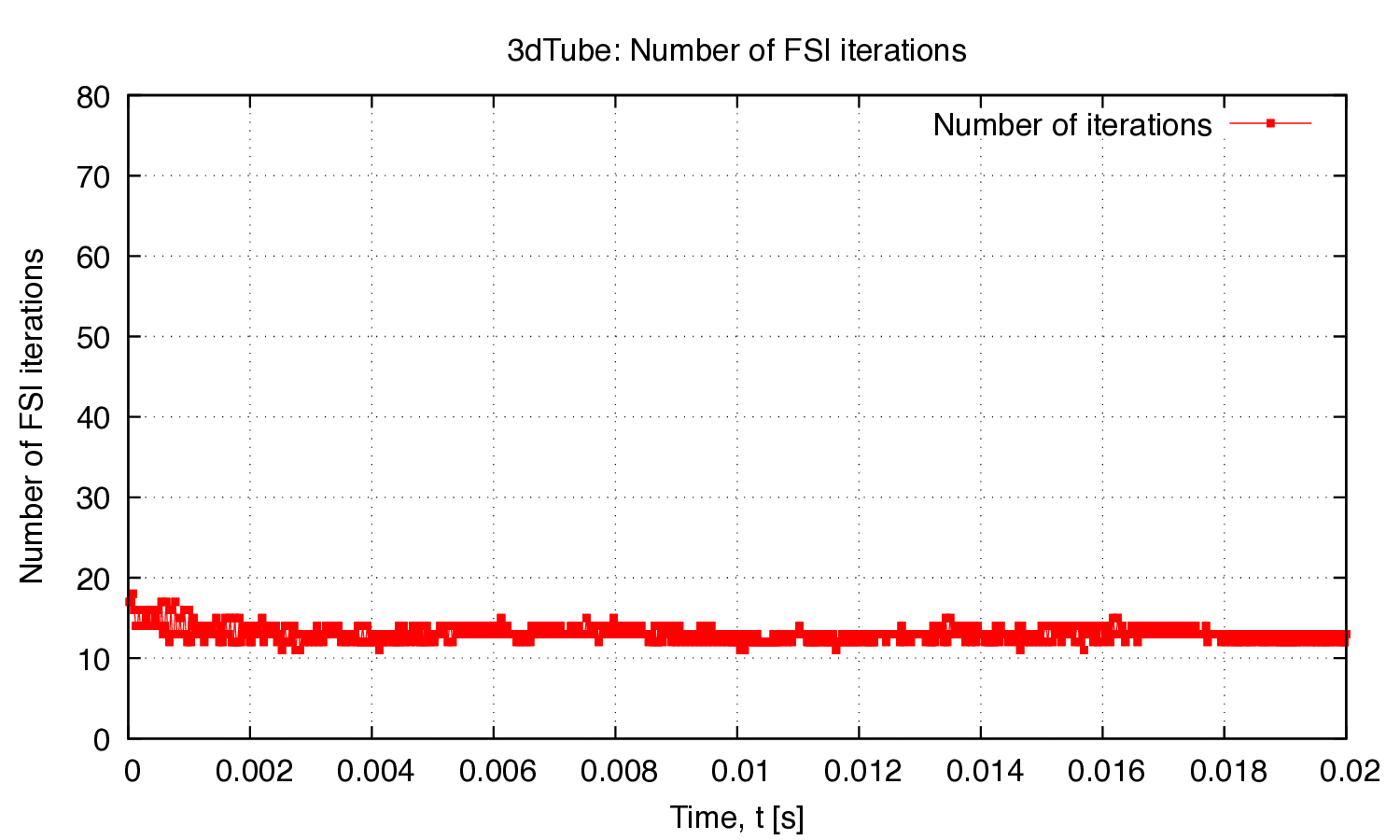

Figure 4: fsiConvergence.pdf


Expected Results

This case has been proposed as a benchmark for FSI problems. The solution for point A's (see Figure 1) axial and radial displacement is available in: A. Lozovskiy, M. A. Olshanskii, and Y. V. Vassilevski, "Analysis and assessment of a monolithic FSI finite element method," Computers and Fluids, vol. 179, pp. 277–288, 2019, doi: 10.1016/j.compfluid.2018.11.004.

Large Time Step

Initially, we compare the solutions using a relatively large time step size of 1e-4 s. Figure 5 shows the radial displacement at point A vs time, Figure 6 shows the axial displacement at point A vs time, and Figure 7 shows the iterations per time step. In the figures, the approaches are designated as:

  • DNF-Aitken: Dirichlet-Neumann formulation with Aitken's acceleration and an incompressible fluid model;
  • DNF-IQNILS: Dirichlet-Neumann formulation with IQNILS acceleration and an incompressible fluid model;
  • WC-DNF-Aitken: Dirichlet-Neumann formulation with Aitken's acceleration and a weakly compressible fluid model;
  • WC-DNF-IQNILS: Dirichlet-Neumann formulation with IQNILS acceleration and a weakly compressible fluid model;
  • RNF: Robin-Neumann formulation with an incompressible fluid;
  • preCICE-DN-IQNILS: Dirichlet-Neumann formulation with IQNILS acceleration and an incompressible fluid model using preCICE.

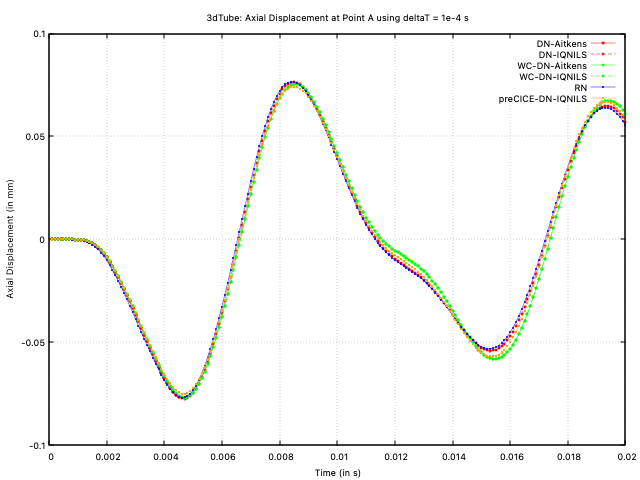

Axial displacement at point A vs time with deltaT = 1e-4 s

Figure 5: Axial displacement at point A vs time with deltaT = 1e-4 s

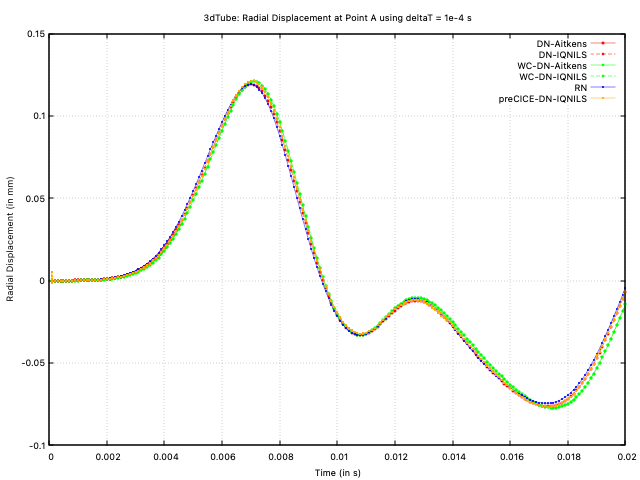

Radial displacement at point A vs time with deltaT = 1e-4 s

Figure 6: Radial displacement at point A vs time with deltaT = 1e-4 s

Number of FSI iterations per time-step with deltaT = 1e-4 s

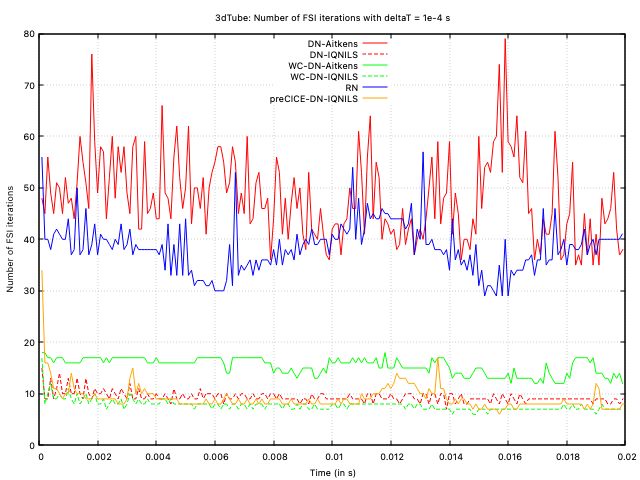

Figure 7: Number of FSI iterations per time-step with deltaT = 1e-4 s

The predictions from all approaches agree closely. Examining the number of FSI iterations per time step, both implementations (solids4foam and preCICE) of Dirichlet-Neumann coupling with IQN-ILS acceleration is seen to require the the fewest number of iterations. The weakly compressible approach is the next best performing approach, while the incompressible Aitken's-accelerated Dirichlet-Neumann and Robin-Neumann approaches are seen to perform the poorest.

Small Time Step

To observe the effect of the time step size, the cases were re-run with a a smaller time step of 2.5e-5 s, where Figures 8, 9 and 10 show the radial displacement, axial displacement and the number of iterations.

Axial displacement at point A vs time with deltaT = 2.5e-5 s

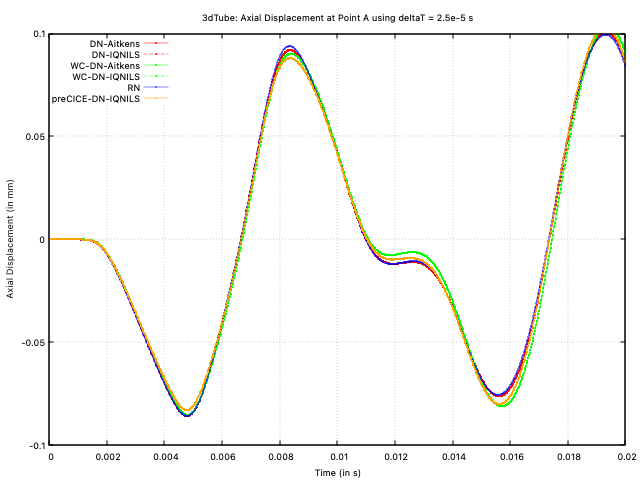

Figure 8: Axial displacement at point A vs time with deltaT = 2.5e-5 s

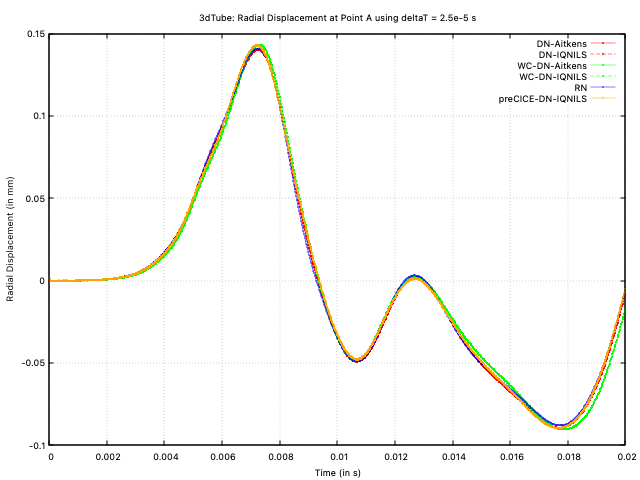

Radial displacement at point A vs time with deltaT = 2.5e-5 s

Figure 9: Radial displacement at point A vs time with deltaT = 2.5e-5 s

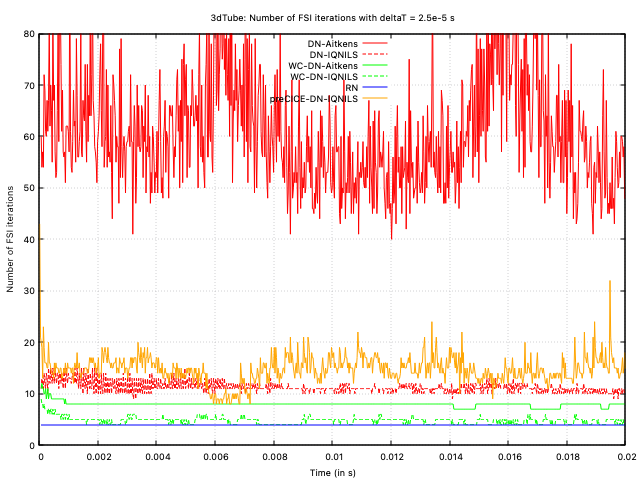

Number of FSI iterations per time-step with deltaT = 2.5e-5 s

Figure 10: Number of FSI iterations per time-step with deltaT = 2.5e-5 s

Unlike the larger time step, the Robin-Neumann approach now requires the least number of iterations per time step (exactly 4 for every time step). The weakly compressible approaches are the next best, where the IQNILS-accelerated compressible model outperforms the Aitken's-accelerated compressible model. The incompressible IQNILS approaches are the next best (both solids4foam and preCICE). Finally, in this case, the Aitken's-accelerated incompressible model shows the poorest performance, requiring an order of magnitude greater number of iterations than the best approach. The impressive performance of the Robin-Neumann approach can also be observed for smaller time steps; in general, for cases like this, if the time step is sufficiently small, the Robin-Neumann approach requires minimal iterations; however, once the time step is large, the Robin approach diverges or becomes uncompetitive.

First-Order Euler vs Second-Order Backward Time Schemes

Finally, we demonstrate the effect of the time scheme by comparing the first-order Euler and second-order backward time schemes, where both the solid and fluid use the same time schemes. For this, we re-run the case with five time step sizes: 8e-4, 4e-4, 2e-4, 1e-4 and 5e-5 s. Figure 11 shows the first-order Euler radial displacement results. Figure 12 shows the second-order backward results and Figure 13 compares both. The second-order scheme shows small time discretisation errors for each time step and is seen to converge more quickly as the time step size is reduced, as expected. The results were generated using the weakly compressible fluid model and Aitken's coupling; however, the same behaviour is expected with the other modelling and coupling approaches.

The effect of the time step size when using the first-order `Euler` time scheme

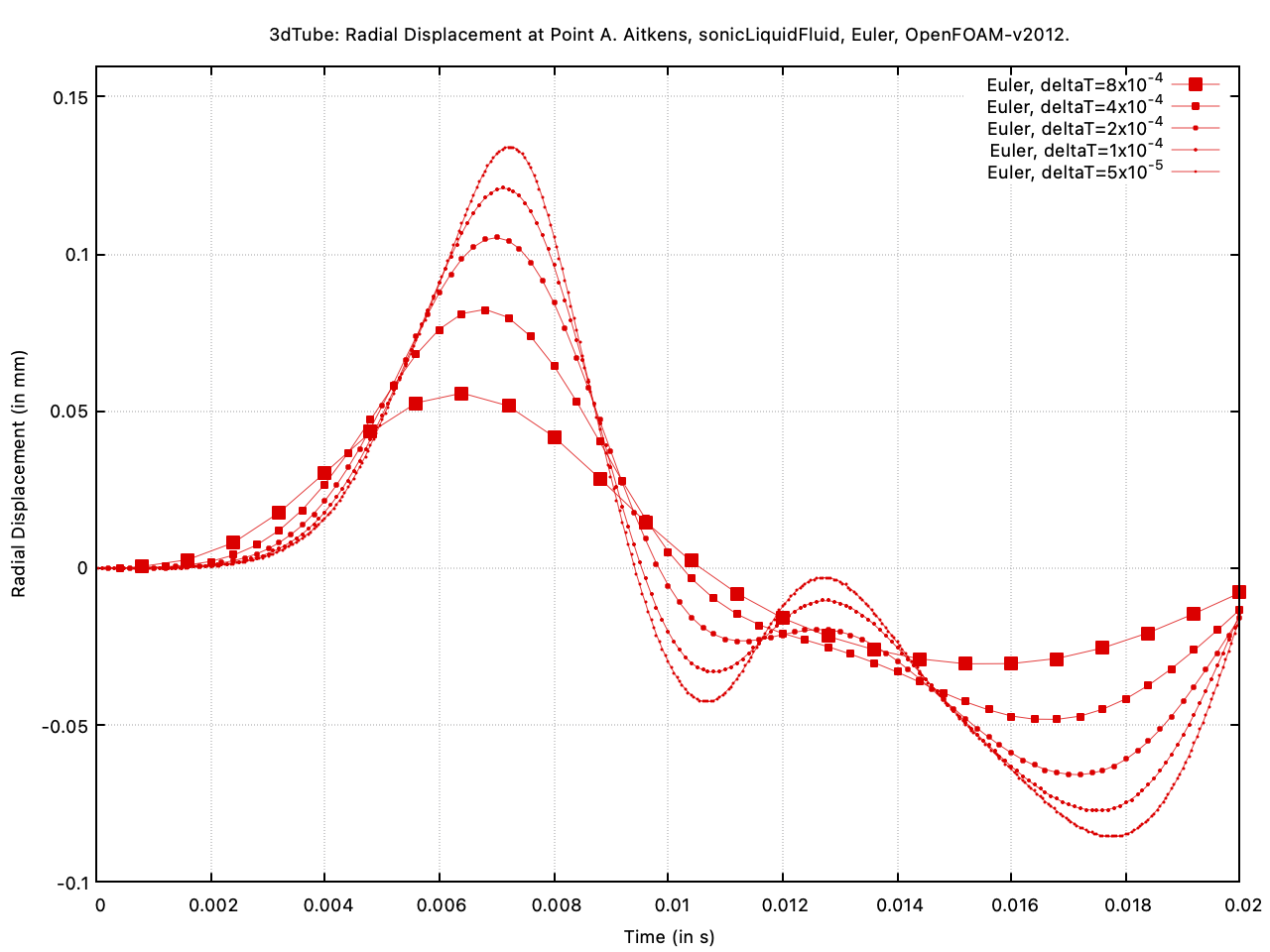

Figure 11: Time step effects when using the first-order Euler scheme

The effect of the time step size when using the second-order `backward` time scheme

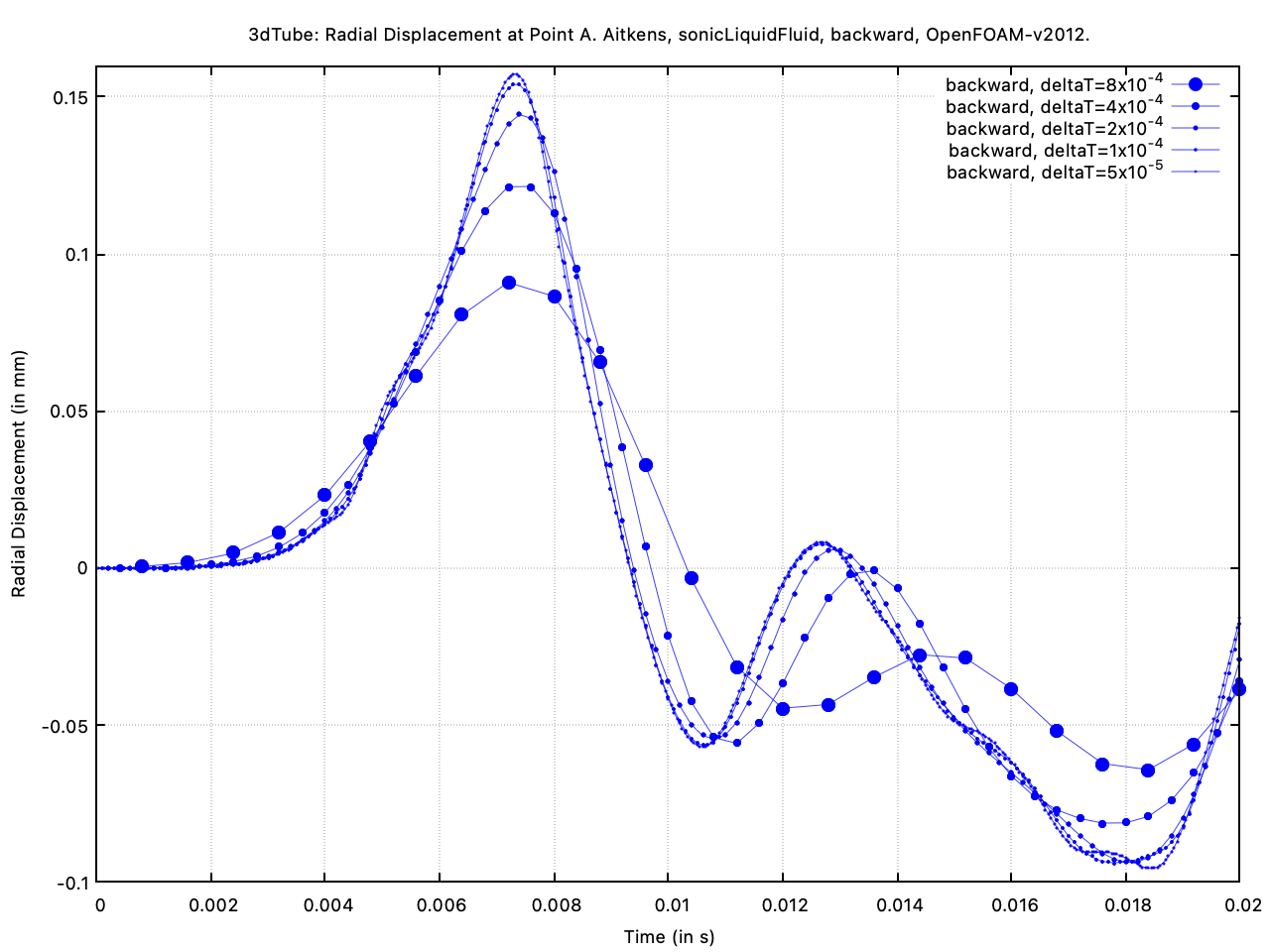

Figure 12: Time step effects when using the second-order backward scheme

Comparing the first-order `Euler` and second-order `backward` schemes as the time step size is reduced

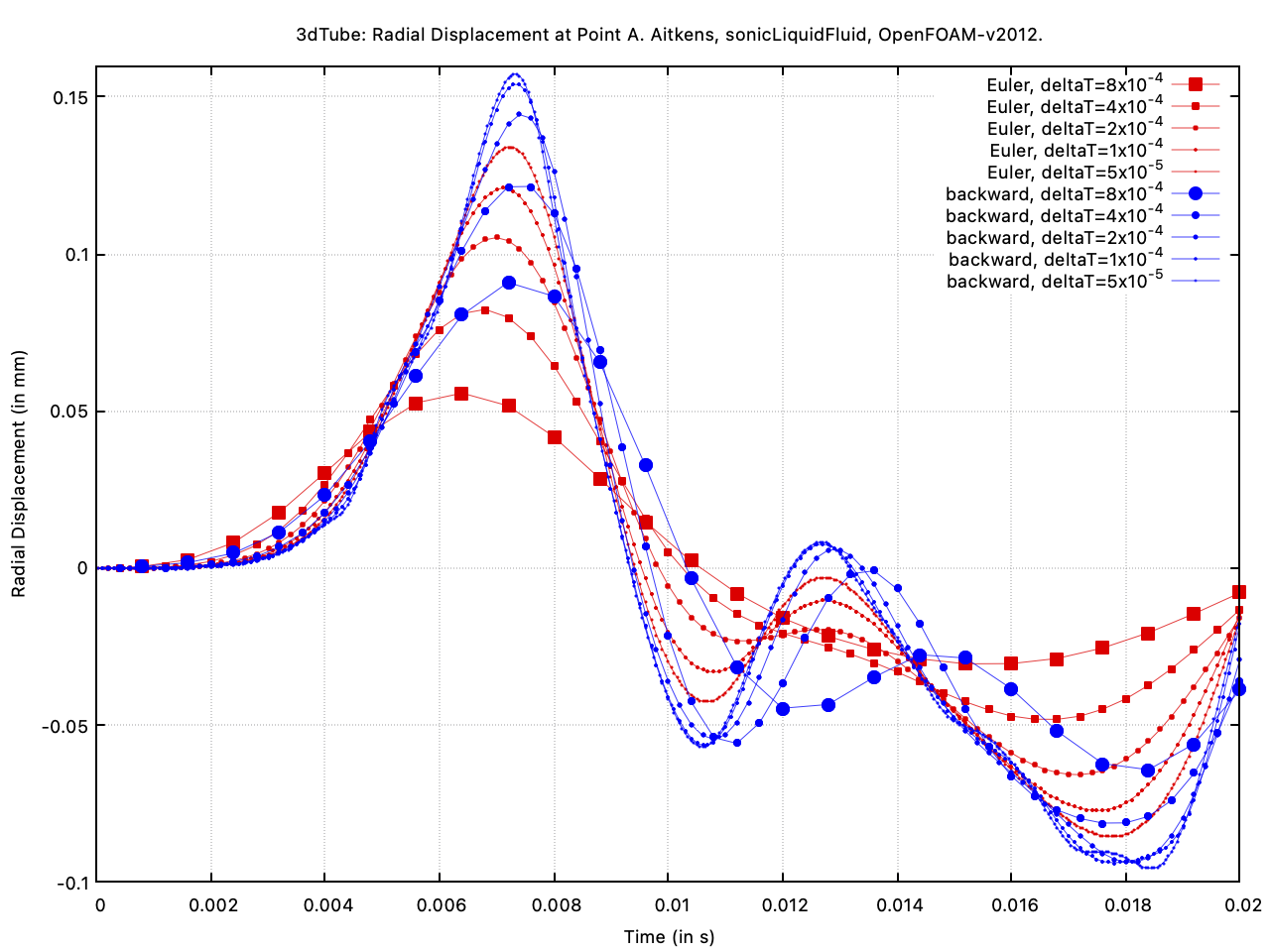

Figure 13: Comparing the Euler and backward schemes

Table 1 gives the total clock time for each model when running these models in serial. Surprisingly, the fastest model is the backward method with the smallest time step (5e-5 s). The fastest Euler model uses the largest time step (8e-4 s), but the next fastest model uses the second smallest time step (1e-4 s). The explanation for this is that when using larger time steps, a much greater number of outer fluid-solid interaction iterations are required, whereas for smaller time steps, much fewer iterations are required, possibly resulting in a lower overall clock time. If the time step sizes were reduced further, it would be expected that at some point, the models would start to become slower (e.g., as shown by the Euler method when going from 1e-4 to 5e-5 s); however, these results highlight the importance of selecting a sufficiently small time step size for fluid-solid interaction simulations.

Time Step Size (in s) Euler (in s) backward (in s)
8e-4 1568 2233
4e-4 2618 2710
2e-4 3009 2451
1e-4 2021 1999
5e-5 2718 1648

Table 1: Clock times for the Euler and backward with different time step sizes

Data Availability

The results and gnuplot scripts used to generate the figures above are available in the solids4foam tutorials benchmark data repository.

What next?

If you are interested in more tutorial cases, check out the cases described in the more tutorials section. In addition, the documentation section contains further implementation and theory details.
