My fifth tutorial: openEndWrench

Prepared by: Ivan Batistić and Philip Cardiff

Tutorial Aims

This guide covers the step-by-step process of building a custom solid case from scratch. It demonstrates how to generate the mesh for the provided geometry, use the cfMesh mesh generator, set up patches for boundary conditions, apply boundary conditions, solve the problem, and post-process the results. We'll use an "open-end wrench" as the example problem.

Prerequisites

Prerequisites for this tutorial are:

• solids4foam-v2.1
• openfoam2312
• ParaView-5.13.2

It is possible to follow the tutorial steps with other OpenFOAM and ParaView versions, but be aware of possible minor differences.

Step 1. Preparing Case Geometry

Before using geometry for simulations, it is essential to ensure the geometry is clean and free of flaws that could compromise mesh generation. Common flaws to address include non-manifold edges, self-intersecting surfaces, gaps, overlapping faces, sharp angles, improper units, disconnected bodies, tolerance issues, etc. These can be resolved using CAD software. In this example, geometry preparation was done using Rhino, but other software such as Blender or Salome can also be used. The case geometry is an open-end wrench, as shown in the figure below.

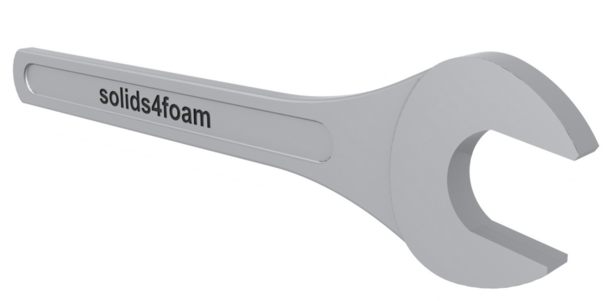

Case geometry

For cfMesh, the prepared geometry should be exported in the stl format (preferably written in the ascii format). Before exporting, it is advisable to divide the surface so that each portion corresponds to the boundary condition that will be applied later in the simulation. In this case, we distinguish between the faces where zero displacement will be prescribed, surfaces where the load will be applied and the symmetry surface. These surfaces are shown in the image below, with the load surface marked in green, the symmetry surface in blue, and the fixed displacement surface in red. Overall, this means the wrench geometry is divided into four .stl files: wrench-fixed.stl, wrench-sym.stl, wrench-free.stl, and wrench-load.stl.

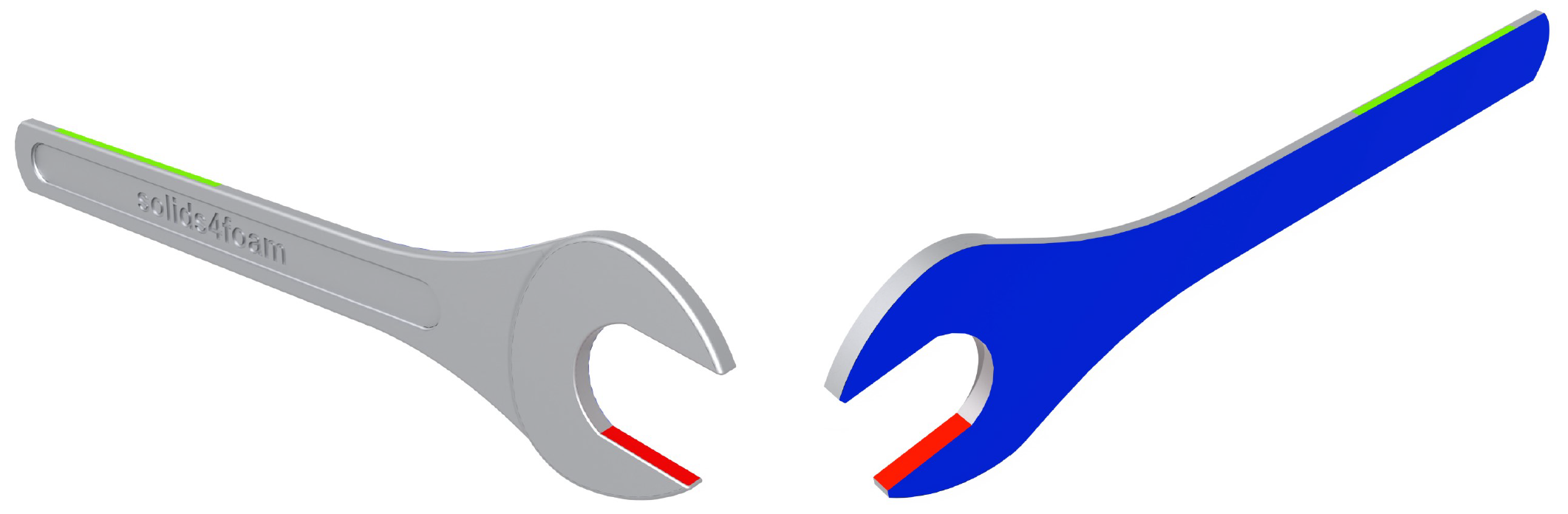

Loading (green), fixed (red) and symmetry surfaces (blue)

To download the geometry, first, we need to open the terminal and create a case directory at a location of your choice:

mkdir openEndWrench
cd openEndWrench

Next, download and unzip the geometry using the following command:

wget https://www.solids4foam.com/tutorials/archive/wrench.zip && unzip wrench.zip

Before proceeding to the next phase, we will set up the SOLIDS4FOAM_DIR variable to point to the solids4foam folder. Since this location is user-dependent, this will ensure that the subsequent commands are applicable to all users. You can add the SOLIDS4FOAM_DIR variable to your .bashrc file with the following command, where you should replace <PATH_TO_SOLIDS4FOAM> with the location of location of the solids4foam directory on your system.

echo 'export SOLIDS4FOAM_DIR=<PATH_TO_SOLIDS4FOAM>' >> ~/.bashrc
source ~/.bashrc

Step 2. Meshing using cfMesh

The cfMesh mesher comes with OpenFOAM (OpenFOAM.com) as a sub-module, so you need to compile it before being able to use it. This can be done with the following commands:

foam
cd modules
git submodule update --init cfmesh
cd cfmesh
./Allwmake

Before proceeding to the meshing phase, we must populate the case directory with the necessary OpenFOAM folders and files. The most efficient way to do this is by finding the most similar tutorial case and copying its structure. For our simulation, which assumes small deformations and a linear elastic material, the cases in solids4foam/tutorials/solids/linearElasticity are the most suitable. For this case, we will copy the case structure from the plateHole tutorial case:

cp -r $SOLIDS4FOAM_DIR/tutorials/solids/linearElasticity/plateHole/* .

Meshing with cfMesh is controlled using the meshDict file. Since cfMesh is included in the OpenFOAM distribution (at least for version v2312), we can find examples of this file either in the OpenFOAM tutorials or in the solids4foam tutorials:

cd $SOLIDS4FOAM_DIR
find . -name meshDict

which will result in the following files:

./tutorials/fluidSolidInteraction/microBeamInCrossFlow/system/fluid/meshDict
./tutorials/fluidSolidInteraction/microBeamInCrossFlow/system/solid/meshDict
./tutorials/solids/linearElasticity/wobblyNewton/system/meshDict
./tutorials/solids/linearElasticity/punch/system/punch_bottom/meshDict
./tutorials/solids/linearElasticity/punch/system/punch_top/meshDict

We will use the meshDict from the wobblyNewton tutorial case. The file should be located under the system folder (locate your terminal in openEndWrench directory):

cp $SOLIDS4FOAM_DIR/tutorials/solids/linearElasticity/
wobblyNewton/system/meshDict system/.

If we open the meshDict file, we will see three entries. The first one specifies the file to be meshed, the second defines the maximum cell size, and the third controls the size on the boundary.

surfaceFile "newtonDecimated.stl";
maxCellSize 0.005;
boundaryCellSize 0.0025;

The next step is to prepare the file to be meshed. Since we have divided our surface into three stl files, we need to combine them into one stl file. Before combining, we must open each stl file and rename the beginning and end of the file to match the stl name. For example for the wrench-free file, we need to replace OBJECT in the first and the last line with wrench-free.

solid OBJECT
  facet normal 0.17364834595052386 0 0.98480772333925526
    ...
 ...
 ...
   endloop
 endfacet
endsolid OBJECT

should looks like:

solid wrench-free
  facet normal 0.17364834595052386 0 0.98480772333925526
    ...
 ...
 ...
   endloop
 endfacet
endsolid wrench-free

Now, we can combine the stl files into one stl file:

cat *.stl > wrench.stl

cfMesh prefers the fms format over the stl format, so we will convert stl tofms using the following command:

surfaceToFMS wrench.stl

Now, we can adjust the meshDict and try to generate a mesh. Set the entries in the meshDict as follows,

surfaceFile "wrench.fms";
maxCellSize 0.016;
boundaryCellSize $maxCellSize;

and run the mesher using the following command (after which we will use paraFoam to visualise it):

cartesianMesh
paraFoam   # or 'touch case.foam && paraview case.foam'

One can see that the mesh size is sufficient to describe the geometry. However, if we want to capture smaller features, such as the engraved letters, we need to refine the mesh in that region. To do so, we can refer to the cfMesh user guide, which details the available meshing features. In this case, we will refine the mesh within a box zone. To determine the box's centre and size, we can use Sources > Alphabetical > Box in ParaView.

Now that we know the box dimensions we can add the refinement in the meshDict file:

surfaceFile "wrench.fms";
maxCellSize 0.016;
boundaryCellSize $maxCellSize;

objectRefinements
{
    box
    {
        type box;
        cellSize 0.0;
        centre (3.55 -0.06 -0.006);
        lengthX 1.8;
        lengthY 0.05;
        lengthZ 0.3;
    }
}

Afterwards, we will run the mesher again,

cartesianMesh
paraFoam

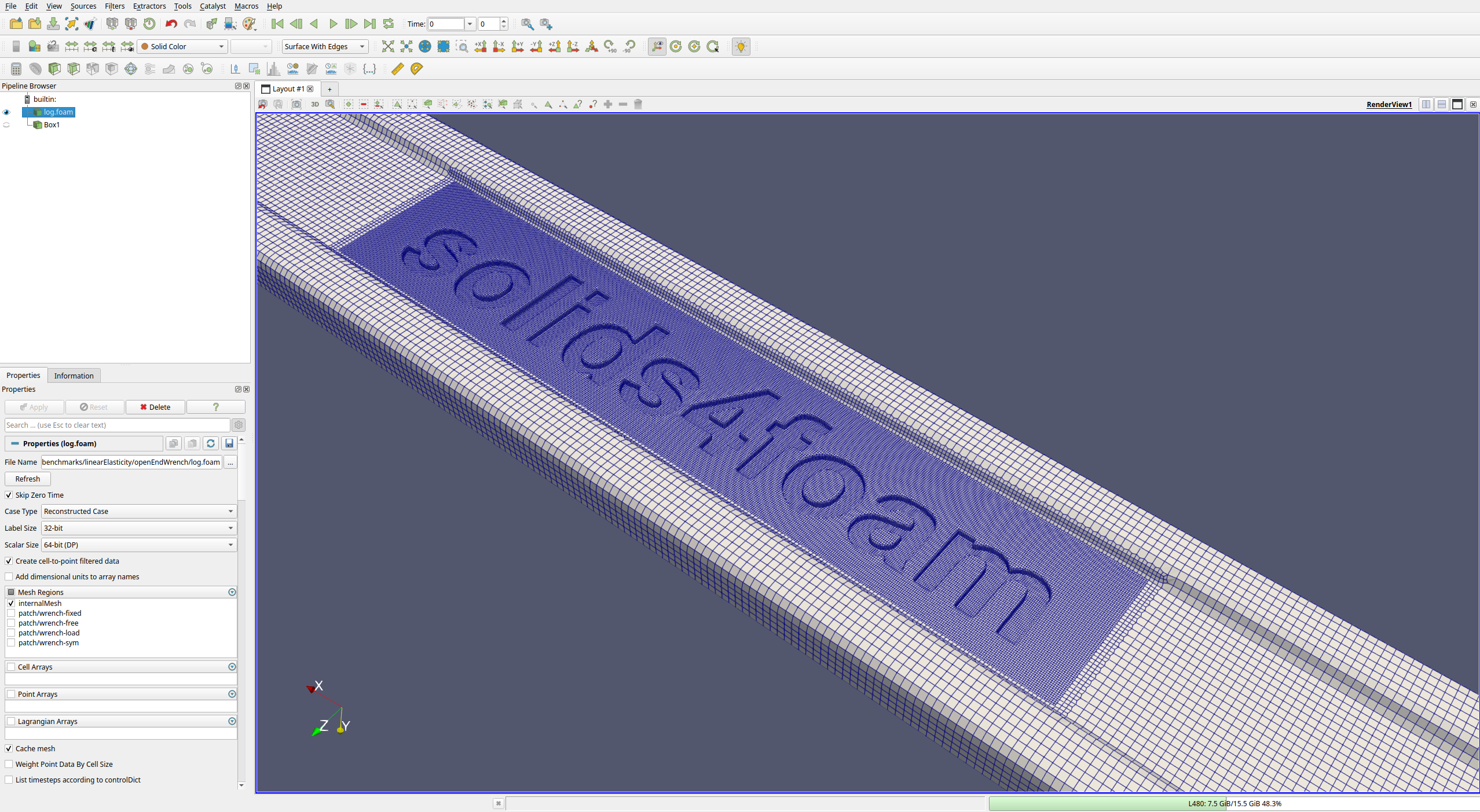

and check mesh in ParaView:

To check if the mesh is suitable for running, we will use the checkMesh utility:

checkMesh

From the output of checkMesh, we can see that the mesh passed the test and is OK for use:

Checking geometry...
    Overall domain bounding box (-0.693371 -0.137758 -0.832674)
     (5.8863 1.987e-08 0.784286)
    Mesh has 3 geometric (non-empty/wedge) directions (1 1 1)
    Mesh has 3 solution (non-empty) directions (1 1 1)
    Boundary openness (-1.9122e-18 3.4032e-14 -2.15079e-15) OK.
    Max cell openness = 3.39452e-16 OK.
    Max aspect ratio = 7.41112 OK.
    Minimum face area = 1.49903e-06. Maximum face area = 0.000593324.
     Face area magnitudes OK.
    Min volume = 5.80657e-09. Max volume = 4.96332e-06.  Total volume = 0.45235.
     Cell volumes OK.
    Mesh non-orthogonality Max: 52.4483 average: 4.18888
    Non-orthogonality check OK.
    Face pyramids OK.
    Max skewness = 1.85112 OK.
    Coupled point location match (average 0) OK.

Mesh OK.

From the Overall domain bounding box line, we can see that the bounding box for our mesh is 6.5 meters in the x-direction, which suggests that we have scaling issues. This typically happens when the mesh is created in millimetres but exported in meters, or vice versa. In this example, the CAD model was in inches, so we need to scale it by a factor of 0.0254 to convert it to meters:

scaleMesh 0.0254

Additionally, the checkMesh output shows that the boundary patches correspond to the names of the stl files, and we can use these patch names to set up the boundary conditions in the 0 directory."

Checking patch topology for multiply connected surfaces...
                   Patch    Faces   Points  Surface topology
            wrench-fixed      659      747  ok (non-closed singly connected)
             wrench-free    70733    71725  ok (non-closed singly connected)
             wrench-load      478      600  ok (non-closed singly connected)
              wrench-sym    17603    18003  ok (non-closed singly connected)

The same patch names are written in the constant/polyMesh/boundary file, which, in our case, looks like this:

3
(
wrench-fixed
{
    type wall;
    nFaces 659;
    startFace 1512428;
}

wrench-free
{
    type wall;
    nFaces 70733;
    startFace 1513087;
}

wrench-load
{
    type wall;
    nFaces 478;
    startFace 1583820;
}

wrench-sym
{
    type wall;
    nFaces 17603;
    startFace 1584298;
}

)

The type wall is used for fluid simulations. For solid simulations, we need to replace it with the patch type for traction and displacement boundaries and with symmetry for patches where symmetry conditions are applied.

3
(
wrench-fixed
{
    type patch;
    nFaces 659;
    startFace 1512428;
}

wrench-free
{
    type patch;
    nFaces 70733;
    startFace 1513087;
}

wrench-load
{
    type patch;
    nFaces 478;
    startFace 1583820;
}

wrench-sym
{
    type symmetry;
    nFaces 17603;
    startFace 1584298;
}

)

The mesh is now ready, and we can proceed to the next step.

Step 3. Preparing Case Files

First, we will open the constant/mechanicalProperties file to adjust the material properties.

planeStress     no;

mechanical
(
    steel
    {
        type            linearElastic;
        rho             rho [1 -3 0 0 0 0 0] 7854;
        E               E [1 -1 -2 0 0 0 0] 200e+9;
        nu              nu [0 0 0 0 0 0 0] 0.3;
    }
);

After inspecting the file, we can see that the properties match those of steel, so we can leave the file as it is.

In the constant/solidProperties file, we choose the solver type, solution tolerances, and the maximum number of iterations per time step (nCorrectors). More information regarding entries insolidProperties can be found in the hotSphere tutorial case. The chosen solver is the same as in plateHole tutorial; linearGeometryTotalDisplacement, which is a segregated solver for small strains and rotations. For a list of the solid models currently available in solids4foam, check this page.

// linearGeometry: assumes small strains and rotations
solidModel     linearGeometryTotalDisplacement;

"linearGeometryTotalDisplacementCoeffs"
{
    // Maximum number of momentum correctors
    nCorrectors     5000;

    // Solution tolerance for displacement
    solutionTolerance 1e-06;

    // Alternative solution tolerance for displacement
    alternativeTolerance 1e-06;

    // Material law solution tolerance
    materialTolerance 1e-05;

    // Write frequency for the residuals
    infoFrequency   100;
}

The remaining files, physicalProperties, dynamicMeshDict, and g in the constant directory, can remain unchanged. For this type of solid simulation, only the g file should be modified if we want to include gravitational effects

Next, in the 0/D file, we need to set up boundary and initial conditions. For the initial conditions, we can assume zero displacement in all cells, which is set up on line 21:

internalField   uniform (0 0 0);

Within the curly brackets of the boundaryField keyword, we need to set the boundary condition for each patch. We need to apply pressure to the wrench-load patch, zero displacement to the wrench-fixed patch, and traction-free conditions to the remaining boundary, wrench-free. Finally, the 0/D file should look like this:

boundaryField
{
    wrench-fixed
    {
        type            fixedDisplacement;
        value           uniform (0 0 0);
    }
    wrench-load
    {
        type            solidTraction;
        traction        uniform ( 0 0 0 );
        pressure        uniform 5e5;
        value           uniform (0 0 0);
    }
    wrench-free
    {
        type            solidTraction;
        traction        uniform ( 0 0 0 );
        pressure        uniform 0;
        value           uniform (0 0 0);
    }
    wrench-sym
    {
        type            solidSymmetry;
        patchType       symmetry;
        value           uniform (0 0 0);
    }
}

The entries in system/fvSchemes fit our case, so we can leave them as they are. In system/fvSolution, we can prescribe a small under-relaxation of the solution field D. This under-relaxation will not notably impact the convergence rate, but in some cases, it can help with calculation stability:

relaxationFactors
{
    fields
    {
        D       0.99;
    }
}

In the system/controlDict, we need to set endTime to 1, as we are solving a static simulation with one load increment and no time marching. The forceDisp1 entry in functions should be removed, and for pointDisp, we can set the value to (0.0055 0 0) to monitor the wrench end deflection.

Step 4. Running the Case

To run the case, we can use the existing Allrun script; however, we need to modify it by removing the line that generates the mesh using blockMesh. To run the case in parallel the Allrun script should look like this:

#!/bin/bash

# Source tutorial run functions
. $WM_PROJECT_DIR/bin/tools/RunFunctions

# Source solids4Foam scripts
source solids4FoamScripts.sh

# Check case version is correct
solids4Foam::convertCaseFormat .

# Run solver in parallel
solids4Foam::runApplication decomposePar
mpirun -np 4 solids4Foam -parallel > log.solids4Foam
solids4Foam::runApplication reconstructPar

We can start the modified Allrun script with the command:

./Allrun

To monitor residuals, we can open a new terminal and type the following command for live monitoring of the solver log file:

tail -f log.solids4Foam

Now the solver is running and will take some time (~4 hours) as the mesh size is notable. In the meantime, we can check how the case is decomposed, i.e., which processors are solving which parts of the domain, by transforming each processor domain into a vtk file using the following commands:

foamToVTK -case processor0
foamToVTK -case processor1
foamToVTK -case processor2
foamToVTK -case processor3

The generated vtk files can be opened in ParaView by choosing _File > Open* and selecting the file _processor_0_procNumber.vtk file located in the processor directory.

The decomposition for this case is shown in the figure below. One can observe that the purple and green processor domains are smaller ; however, this region contains a finer mesh for the engraved letters, resulting in an overall balanced load on all CPUs.

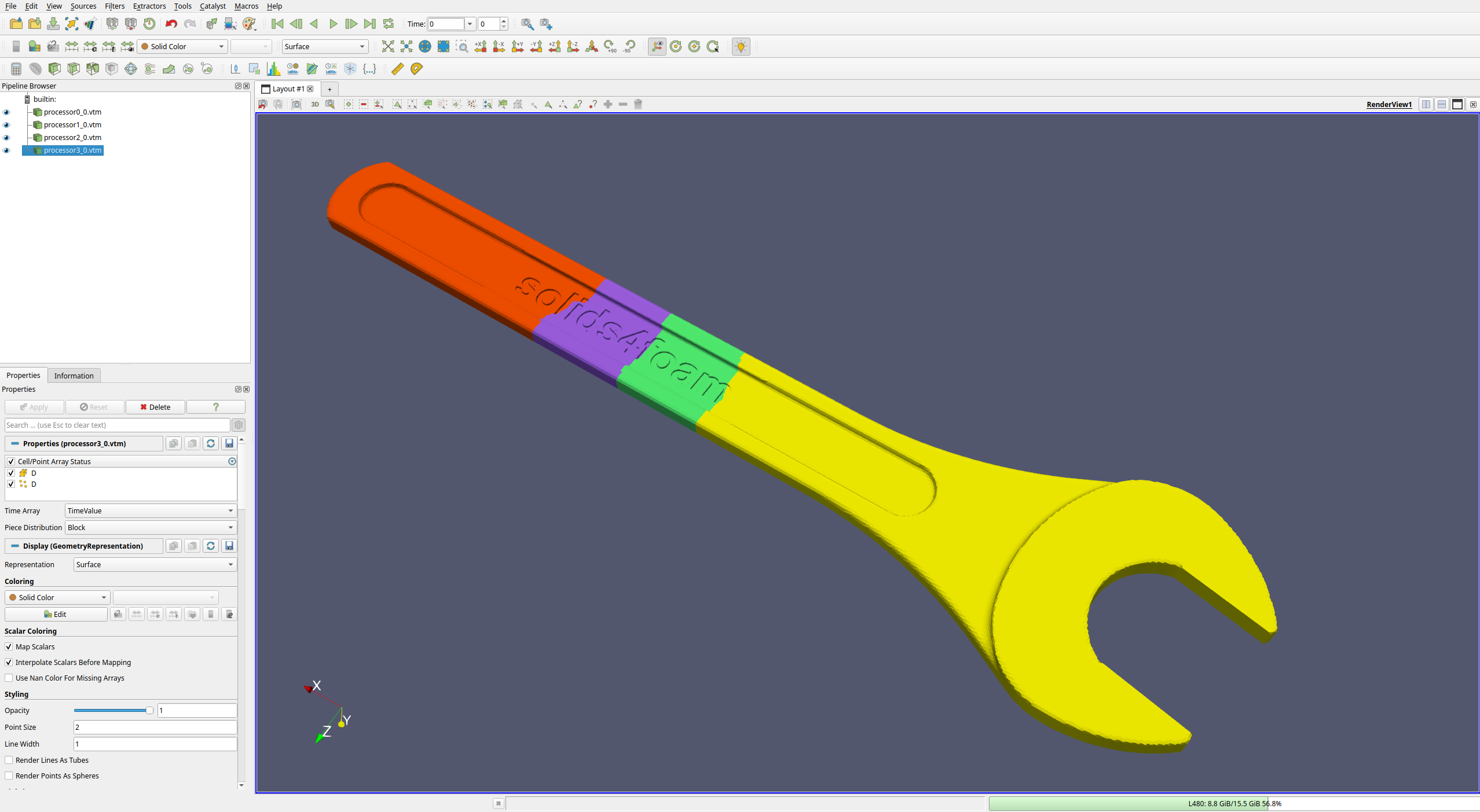

Computational domain decomposition, colours denote different processors

Step 5. Analysing the Results

When viewing the results in ParaView, we can first mirror the computational domain to obtain the full one by choosing Filters > Alphabetical > Reflect and mirroring around the Y plane. Afterwards, we can warp the geometry by a scaled displacement field, which can be achieved using the Warp By Vector filter, where the D displacement field is selected as the Vector, and a Scale Factor of 1 shows the true deformation. In this case, using a Scale Factor of 100 allows the deformation to be seen.

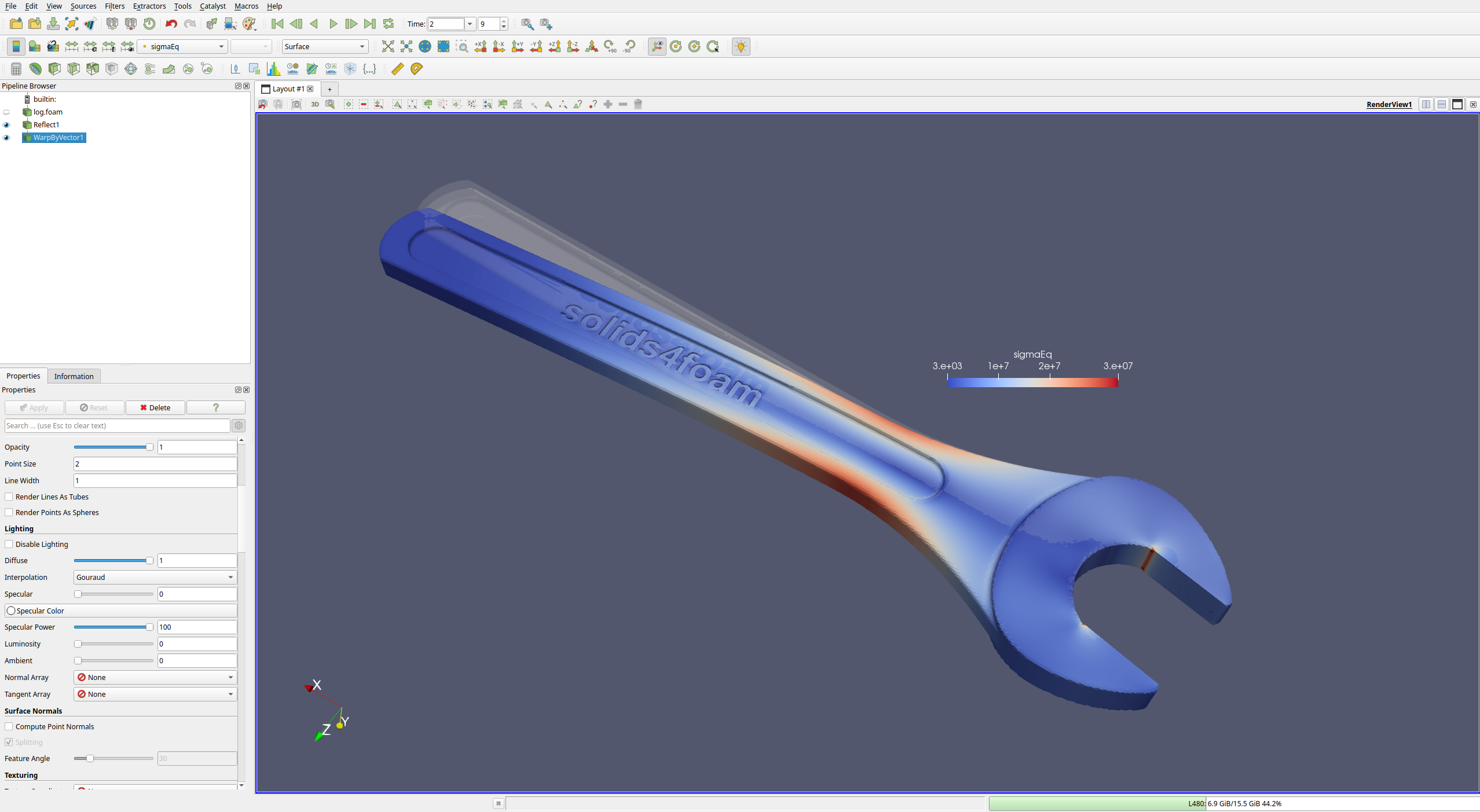

Deformed geometry by resulting displacement (scaled by factor of 100)
